6-parameter Portable Patient Monitor for ICU / CCU , Surgery

6-parameter Portable Patient Monitor for ICU / CCU , Surgery

hot selling professional service 6-parameter patient icu monitor

Quick Detail:

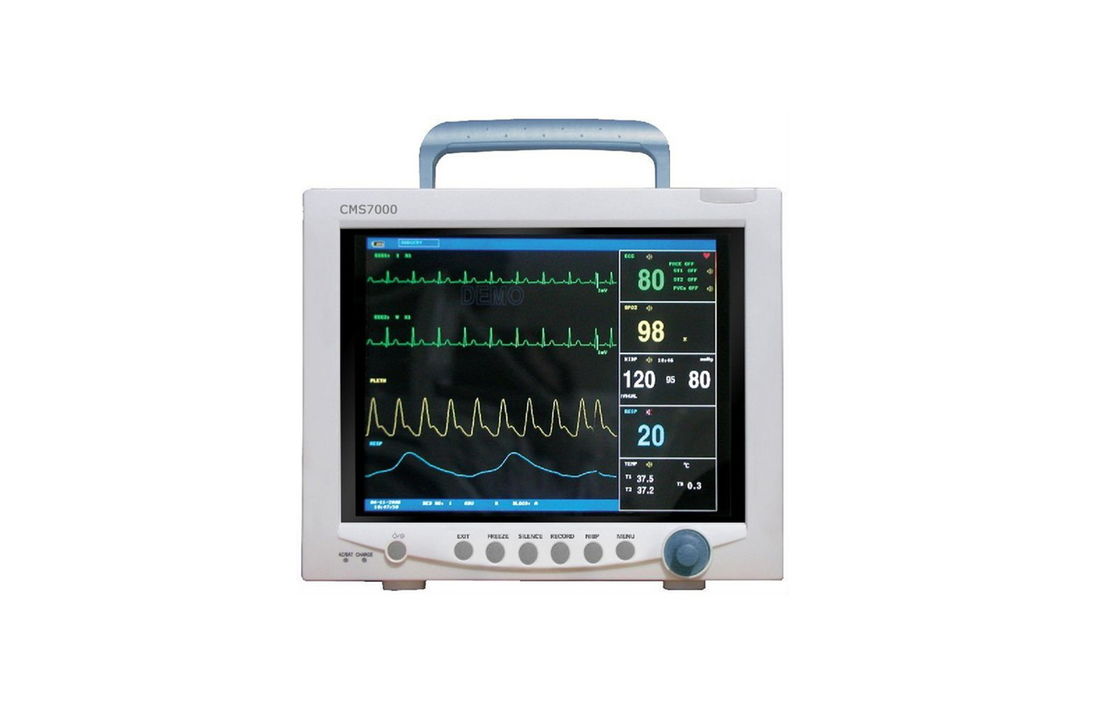

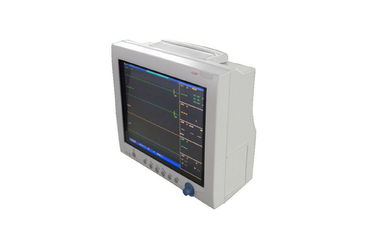

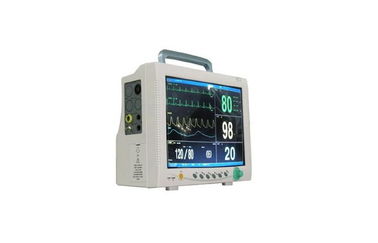

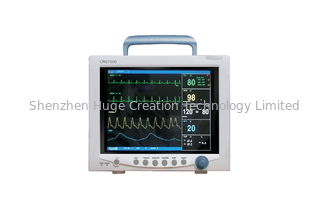

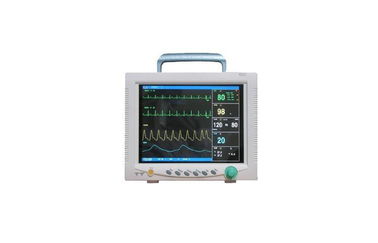

This equipment with touch screen can monitor such parameters as ECG, RESP, SpO2, NIBP, and Dual- channel TEMP. It integrates parameter measuring module, display and recorder in one device to form a compact and portable device. At the same time, its built-in replaceable battery provides convenience for patient moving.


Description:

*Elegant appearance, clear marks, standard interface, oxyCRG SCREEN, trend graph, big characters, other BED observation, which are convenient for user.
*Be applicable for adult, pediatric and neonatal.
*Standard parameters of ECG, RESP, NIBP, SpO2 and dual-channel TEMP. IBP, CO2, built-in printer, curving handle, moving bracket and hanging bracket are optional.
*Finish all operations by touch screen or keys and knobs.
*Operation interface with Chinese and English. (Optional languages: French, German, Italian, Dutch, Portuguese, Turkish, Spanish, Poland.) design with full built-in module, stable and reliable performance.
*12.1'' color TFT LCD with high-resolution displays patient parameter and waveform, and alarm, bed NO, clock, state and other information provided by the monitor synchronously.
*Monitoring contents, scan speed, volume and output contents can be set optionally.
*Storage of 480-hour trend data, and review of 40-second holographic waveform.
*Storage and review of 72-hour ECG waveform.
*Function of NIBP review, storage for up to 2400 NIBP data.
*Adopt digital SpO2 technology, which has strong anti-interference and anti-weak filling capability.
*Calculation of drug concentration.
*Network: connecting with central station, other Bed observation and software updating. Connection mode: wireless and wired.
*Built-in rechargeable battery for uninterrupted monitoring.
*Print ECG, SpO2, RESP, BP and temperature data with one-key.

Applications:

Compact appearance, comprehensive functions, simple and convenient operation, which is applicable for hospitals, community medical treatment and family.

Specifications:

SpO2
Measuring Range  0 ~ 100 %
Alarm Range  0 ~ 100 %
Resolution  1 %
TEMP
Channel   dual-channel
Measuring and Alarm Range 0 ~ 50C
Resolution  0.1C
Accuracy   0.1C
EtCO2
Method   Sidestream or Mainstream
Measuring Range for CO2 0~150mmHg
*IBP
Channel          dual-channel
Label           ART, PA, CVP, RAP, LAP, ICP, P1, P2
Measuring and Alarm Range -50~350 mm Hg
Resolution          1 mm Hg
*Accuracy             ±2% or 1mm Hg, which is greater
*Display Mode    12.1" color TFT LCD with high-resolution
*Power Supply    220V, 50Hz
*Safety Classification  class Ⅰ, type CF defibrillation-proof part
*Physical Characteristic:
 Dimension    310×140×263(mm)
 Net weight     3.8Kg

Competitive Advantage:

Good service .

Professonal delievery
