Product Details:
Payment & Shipping Terms:
|
| Color: | White | Feature: | Bluetooth ECG |
|---|---|---|---|
| Channel: | Single Channer | ||
| High Light: | mini ultrasound machine,equine ultrasound machine |
||

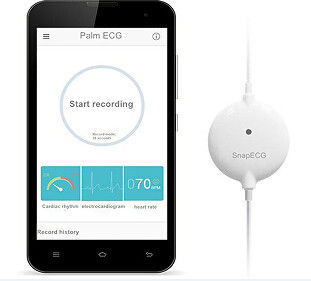

24 hours monitoring mini bluetooth ECG machine snapecg with phone control
Product introduction:
ECG recorder measurement of human ECG parameters are connected by the ECG electrodes. Through wireless Bluetooth transmission to a display device etc. Display apparatus having data and waveform display and storage function,At the same time with heart rate trend chart, heart rate distribution map, rhythm trend charts and abnormal rhythm distribution map display function
The value of heart rate calculation method:60*1000/RR interval.
Product Features:
1. The most mini type ECG machine in the market
2. Phone control, compatible with IOS& Android systerms
3. bluetooth 4.0 support
4. 24 hours monitoring, automatic access the health report, help to build a more complete personal health records.
Specification:
| Display equipment: | The software system for Android 4.0 or above;The IOS system of IOS7 or above |
| Display sensitivity: | 5mm/mV(X0.5), 10mm/mV(X1), 20mm/mV(X2) |
| Waveform scanning speed: | 12.5mm/s, 25mm/s, 50mm/s |
| Measurement range: | 15-350bpm |
| Accuracy: | More or less then 1bpm or 1% |
| Charge time: | 2 hours |
| Duration: | 8 hours |
| Power source: | 0.15V No. 7 3.7V lithium battery Rechargeable battery |
| Battery life: | fully charge and discharge times of the battery allowed not less than 500 times. |
| Battery capacity: | 300 mAh |
| Operating environment: | Temperature: 5 to 40 centigrade Humidity: 25% to 85% RH (non-condensation) |
| Storage&transportation environment: |
Temperature: -20 to 55 centigrade Humidity:>93% RH (non-condensation) |
| Dimension: | 40* 40* 5mm |
| Weight: | 15g |
Standard accessory:
1pc ECG recorder
1set ECG cable
10pcs Electrocardio electrodes
1pcs User manual
