| Type: | Sonoline C F | Suitable Using Range: | After The 12th Week Of Pregnancy |
|---|---|---|---|
| Battery: | Two 1.5V(AA Size)alkaline Battery | Display: | LCD Display |
| Usage: | Clinic, Home, Hospital | ||
| High Light: | angel sound fetal doppler,home fetal doppler |
||

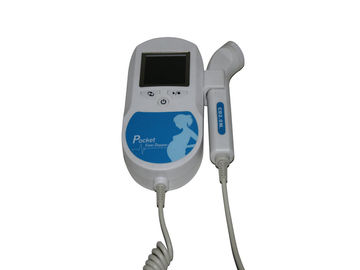

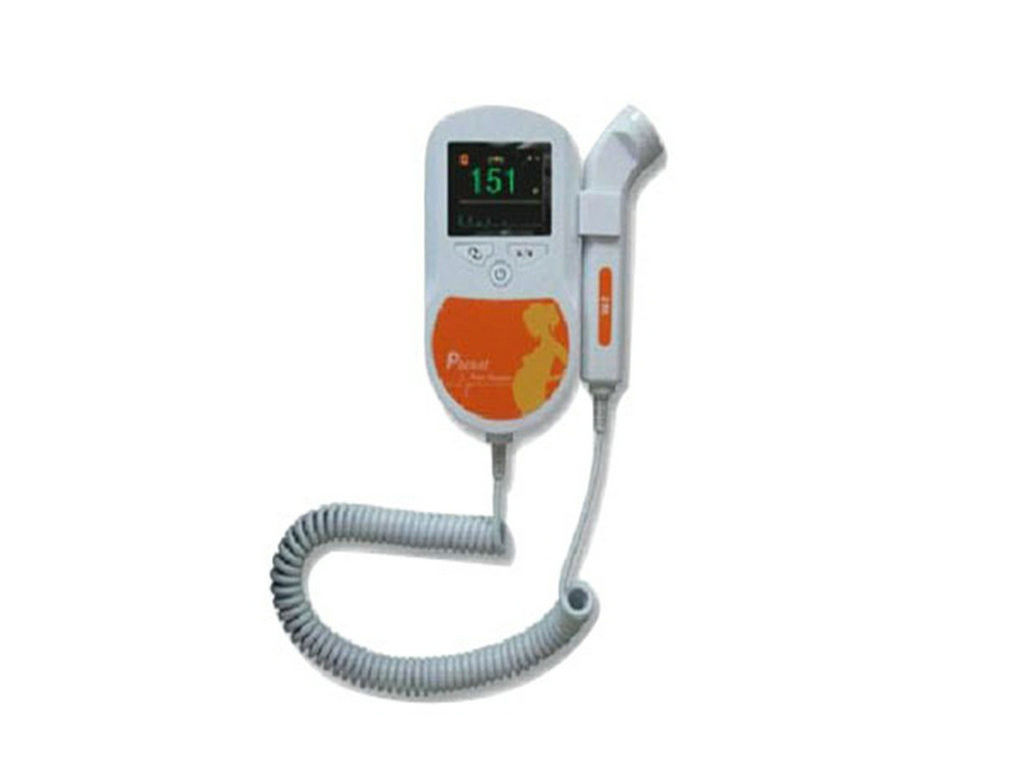

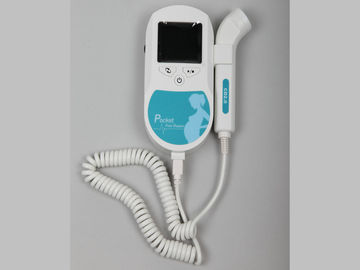

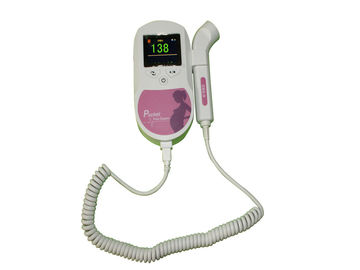

Sonoline C Pocket Fetal Doppler , Fetal Monitoring Equipment
small fetal doppler with display Sonoline C for home use
Quick Detail:
Pocket Fetal Doppler is a hand-held obstetrical unit, which can be used in hospital, clinic and home for daily self-check by pregnant woman.
It contains components of ultrasonic signal transmitter and receiver, analog signals processing unit, FHR calculating unit, LCD display control unit etc.It has 3 work modes: real-time FHR display mode, averaged FHR display mode, and manual mode. It also has audio output, and can be connected with earphone or recorder with audio input.
Description:
Anti-electroshock Type: Internally powered equipment
Anti-electroshock Degree: Type B applied part
LCD Display: 38 mmX28 mm
FHR Measuring Range: 50 ~240 BPM (BPM: beat per minute)
Resolution: 1 BPM
Accuracy: ±2 BPM
Power Consumption: < 0.8 W
Voltage: DC 3.0 V
Power Supply: Two 1.5V(AA size)alkaline battery
Suitable Using Range: Suitable for use after the 12th week of pregnancy
Auto Shut-OFF: After 1 minute no signal, power off automatically
Working Frequency: 2.0 MHz±10%
Ultrasound Output Power: P < 10 mW
Ultrasonic Output Intensity: Isata < 5 mW/cm2
Working Mode: Continuous wave Doppler
Effective Radiating Area of Transducer: 157 mm2±15%
Applications:
home use
Specifications:
LCD Display: 38 mmX28 mm
FHR Measuring Range: 50 ~240 BPM (BPM: beat per minute)
Resolution: 1 BPM
Accuracy: ±2 BPM
Power Consumption: < 0.8 W
Voltage: DC 3.0 V
