| Display: | Led Display | Type: | Hand Held Pulse Oximeter |
|---|---|---|---|
| SpO2 Measuring Range: | 0% - 100% | Application: | Adult |
| Qualification: | Passed CE,FDA | PR Measuring Range: | 30bpm~250bpm, (the Resolution Is 1bpm) |
| High Light: | finger tip pulse oximeter,recording pulse oximeter |
||

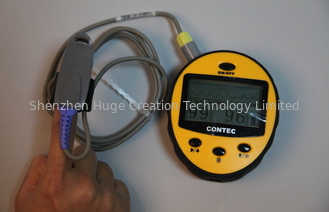

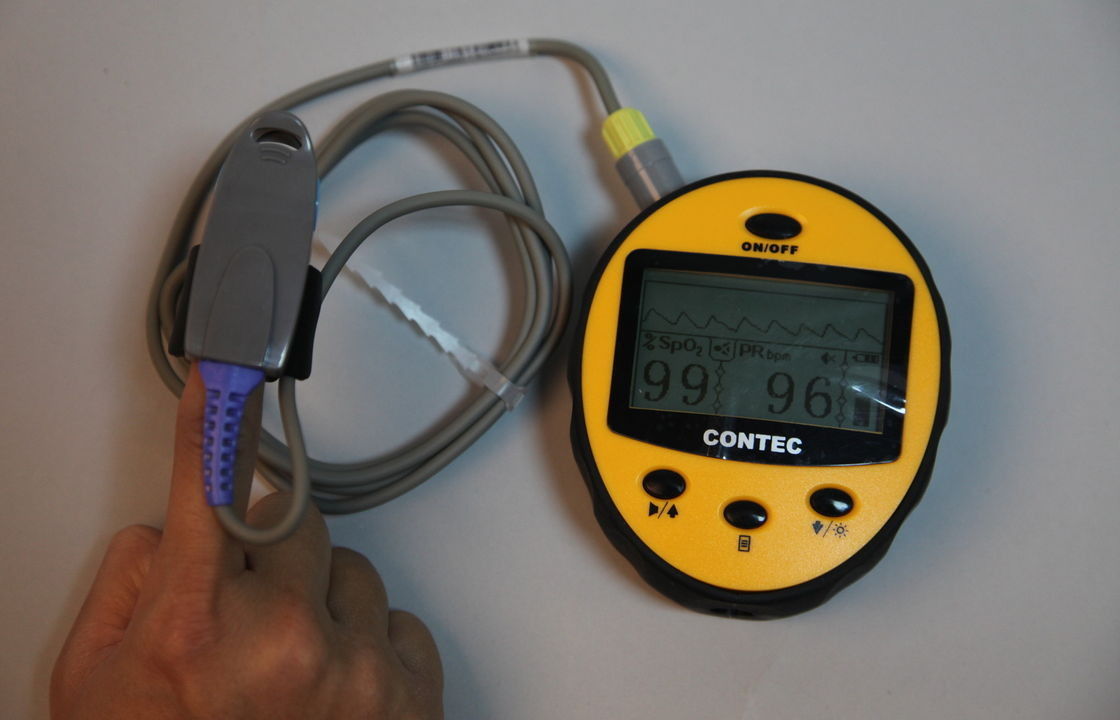

Mini Medical Recording Fingertip Pulse Oximeter Normal Readings
Quick Detail:
*Small in volume,light in weight and convenient in carrying
*Operation of the product is simple ,low power consumption
*Operation menu for the function setting
*SpO2 value display
*Pulse rate value display, bar graph display
*Pulse waveform display
*With backlight
*A pulse rate sound indication
*With measured data overruns limits and low-voltage alarm function, the upper/down alarm range is adjustable
*Battery capacity indication
*Low-voltage indication: low-voltage indicator appears before working abnormally which is due to low-voltage ,and with alarm function
*Real-time data can be transmitted to computers(Option)
*Connected with an external oximeter probe
Description:
Display Mode: LCD display
Screen Resolution: 160*96
SpO2 Measuring Range: 0%～100%, (the resolution is 1%).
Accuracy: 70%～100%: ±2% ,Below 70% unspecified.
PR Measuring Range: 30bpm～250bpm, (the resolution is 1bpm)
Accuracy: ±2bpm or ±2% (select larger)
Measurement Performance in Weak Filling Condition:
SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is ±4%, pulse rate error is ±2 bpm or ±2% (select larger).
Resistance to Surrounding Light: The deviation between the value measured in the condition of man-made light or indoor natural light and that of darkroom is less than ±1%.
Power Consumption: less than 80mA
Voltage: DC 3.0V
Power Supply: 1.5V (AA size) alkaline batteries * 2
Battery Working Hour: Two batteries can work continually for 28 hours(without backlight)
Safety Type: Interior Battery, BF Type
Qualification
Passed CE,FDA
Applications:
The product is suitable for being used in family, hospital, oxygen bar, community healthcare, physical care in sports (It can be used before or after doing sports, and it is not recommended to use the device during the process of having sport) and etc.
Specifications:
|
Display Mode: |
LED display |
|
SpO2 Measuring Range: |
0%~100%, (the resolution is 1%). |
|
Accuracy: |
70%~100%:±2% ,Below 70% unspecified. |
|
PR Measuring Range: |
30bpm~250bpm, (the resolution is 1bpm) |
|
Accuracy: |
±2bpm or ±2% (select larger) |
