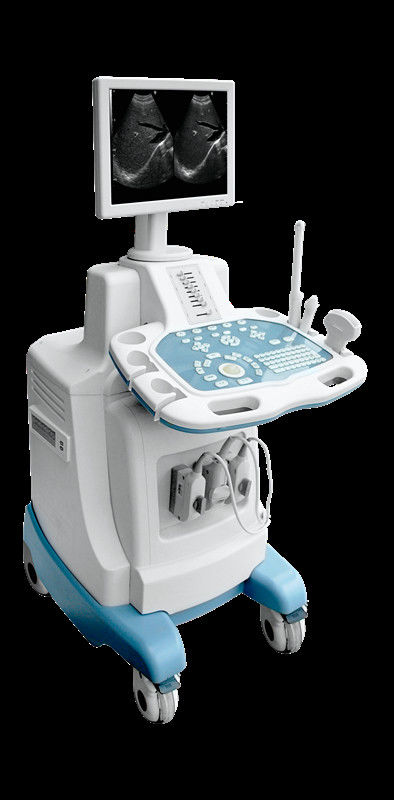

Full Digital Mobile Ultrasound Machine Medical Trolley Ultrasound Scanner ATNl51353 Plus 80 Elements

China Full Digital Mobile Ultrasound Machine Medical Trolley Ultrasound Scanner ATNl51353 Plus 80 Elements supplier
Full Digital Mobile Ultrasound Machine Medical Trolley Ultrasound Scanner ATNl51353 Plus 80 Elements supplier Full Digital Mobile Ultrasound Machine Medical Trolley Ultrasound Scanner ATNl51353 Plus 80 Elements supplier

Large Image :  Full Digital Mobile Ultrasound Machine Medical Trolley Ultrasound Scanner ATNl51353 Plus 80 Elements

Product Details:

Place of Origin: China
Brand Name: Hugecare
Certification: ISO CE RoHS
Model Number: ATNL51353plus 80 elements

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD 2699 /pc
Packaging Details: Color Boxs
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000cps per month
Contact Now
Detailed Product Description
Color: Milky Display: 15 Inches LCD
Style: Trolley Scanning Mode:: Convex/Linear/Trans-vaginal/Trans-rectal;



Full Digital Medical Trolley Ultrasound Scanner ATNl51353 Plus 80 Elements





Application Scope:

Abdomen, human liver, gallbladder, spleen, kidney, pancreas, heart, bladder, womb and urinary system, skeletal muscle, small parts, etc



Probes’ frequency conversion:

3.5MHz convex array probe’s conversion range is:2.0,2.5,3.0,3.5,4.0,4.5,5.0(MHz);
6.5MHzTrans-vaginal probe’s conversion range is:4.0,6.0,6.5,7.5,8.0(MHz);
7.5MHz surface linear probe’s conversion range is:5.0,7.5,10.0(MHz)

Full Digital Mobile Ultrasound Machine Medical Trolley Ultrasound Scanner ATNl51353 Plus 80 Elements

Detail specification:

Features Scanning scope: 205mm to 245mm
Windows XP system;
Two probe sockets
1 USB ports, VGA and printer connecters

Scanning line: 512 lines/frame
Gray scale transformation: 4 γ(gamma) correction;
Multi-stage dynamic focusing: 4 transmit focus to support the launch multi-focus combination;
Digital scanning convertor:512*512*8bits
8 types of image magnification:×0.8,×1,0×1.2, ×1.3,×1.5,×1.6, 1.8,×2.0
8 types different of Gamma correction curve A-H and histogram imaging function
With one USB/VGA/Printer connecters
Body Marks: 44kinds
Measure heart rate, slope, Dd/Ds/HR/FS and multi parameter of fetus.
12 types of fetus parameter is available for choice , gestational age and fetus can be measured
Compatible of jet printer, laser printer, video printer and video recorder



Image Processing:

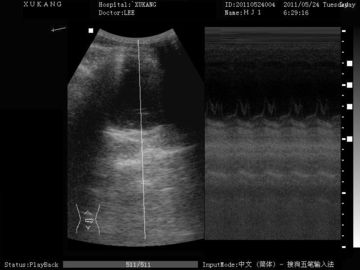

Display mode: B, 2B, 4B, B/M, M,ZOOM B
Freezing, real time, selective enlargement, upwards/downwards and left/right turnover of the image can be realized under B and M mode
Cine loop: 256 frame auto/manual cine loop; multi screens cine loop ,
Partial display function
CF card can store and output large capacity of images.
U disk can be used for storing images



Professional measurement Software Functions:

General Menu: distance, area/pm, volume, angle, ratio, L ratio, histogram, C. Histogram;
Gynecology menu: LMP, BBT, U.T, ENDO, CX-L, OV-V, FO-D, UT-L/CX-L;
Obstetrics menu: distance, GS, CRL, BPD, HC, AC, FL, Fetus grow, EFW,GA, APTD, TTD, EDC, FGC FBP(FHR, FM, FBM, FT, AF, PL).
Heart menu: distance, time, slop, rhythm;
Small Apparatus menu: distance, THY.V, HIP, THY-report, HIP-REPORT;
Urology menu: distance, RUV, PV




Standard Configuration:
Main unit
15 inches high resolution non-interlaced monitor
3.5MHz R60 electronic 80elements convex transducer
USB,VGA,Video, printer ports

two probe sockets



Optional

High frequency linear probe
trans-vaginal probe
Video printer
