| Product Name: | Modular Patient Monitor | Warranty: | One Year |
|---|---|---|---|
| Packing: | Carton Box | Display: | 12 Inch Color TFT Display |
| High Light: | multi parameter patient monitor,remote patient monitoring devices |
||

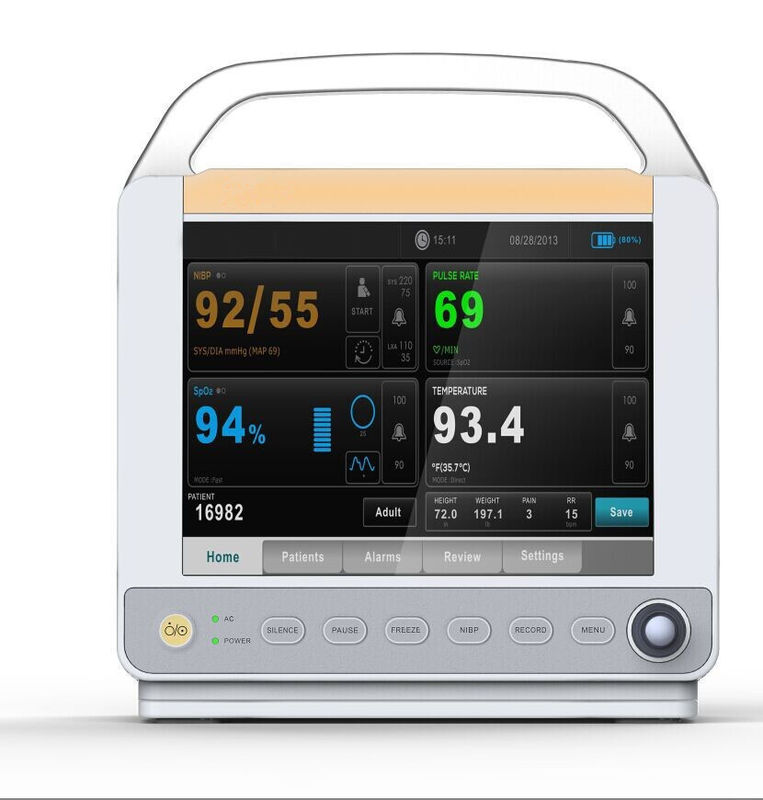

E12 12'' Multi-parameter Oscillometry Modular Patient Monitor
Model No.: E12
Features :
NIBP:
| Method | Oscillometry |
| Modes | Manual/Auto/Continuous |
| Auto measure time | Adjustable |
| Measurement rang | 10-270mmHg |
ECG:
| Lead mode | 3-lead or 5-lead |
| Lead selection | I, II, III, avR, avL, avF, V |
| Heart rate range: Adult | 15-300bpm, Pediatric/Neonatal: 15-300bpm |
| ECG waveform | 2 channels |
| Accuracy | ± 1 bpm or ±1% |
| S-T segment detection Measurement range | -0.2mv~2.0mv |
| Alarm | Yes, audible and visual alarm, alarm events review |
SPO2:
| Measurement range | 0-100% |
| Accuracy | 70-100%, ±2% 0-69%,upspecified |
Pulse rate:
| Range | 20-254bpm |
| Accuracy | ±3bpm |
Respiration:
| Method | RA-LL impedance |
| Range |
Adult:0-120rpm pediatric/neonatal:0-150rpm |
| Apnca alarm | Yes |
Temperature
| Range | 0-50°C |
| Apnca | 0.1°C |
| Channel | Dual-Channel |
EtCO2 (option)
| Measurement Mode | Side-stream or mainstream |
| Measurement range | EtCO2: 0-99mmHg |
| Accuracy | CO2 concentration |
| Apnea alarm | YES |
IBP (option)
| Channel | 2 channels |
| Pressure transducer | Sensitivity: 5( mV/V/mmHg) |
| Transducer sites | ART, PA, CVP, RAP, LAP, ICP |
| Alarm range | 10~300mmHg |
Standard parameter & configuration
3/5 lead ECG, RESP, SpO2, NIMP, TEMP, PR
Optional parameter & configuration
2-IBP,ETCO2 , Network, Printer, Trolly, Wall support
Packaging & Delivery
| Packaging Details: | Standard export carton packing. |
| Delivery Detail: | Shipped in 5 days after payment |
