ECG / TEMP / NIBP / RESP / PR / spo2 monitor M8 multi - parameter

China ECG / TEMP / NIBP / RESP / PR / spo2 monitor M8 multi - parameter supplier
ECG / TEMP / NIBP / RESP / PR / spo2 monitor M8 multi - parameter supplier ECG / TEMP / NIBP / RESP / PR / spo2 monitor M8 multi - parameter supplier

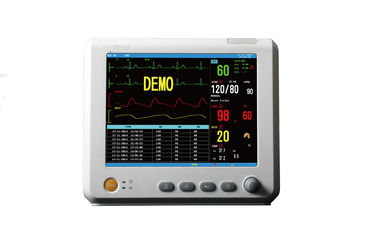

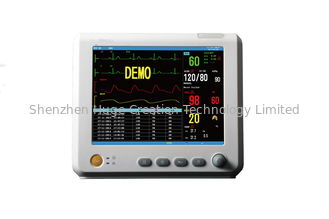

Large Image :  ECG / TEMP / NIBP / RESP / PR / spo2 monitor M8 multi - parameter

Product Details:

Place of Origin: China, mainland
Brand Name: OEM
Certification: CE
Model Number: M8

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: USD $800-1200/pcs
Packaging Details: Carton box
Delivery Time: within 5 working days after get payment
Payment Terms: T/T, Western Union, MoneyGram, paypal
Supply Ability: 10000pcs/month
Detailed Product Description
Product Name: Patient Monitor Warranty: One Year
Packing: Carton Box Display: LCD Display
High Light:

patient monitoring system

,

multi parameter patient monitor



ECG / TEMP / NIBP / RESP / PR / spo2 monitor M8 multi - parameter





Brief introduction:

Patient monitor is a kind of instrument or system which is used to measure and control

patients physiological parameters, which can be compared with known settings, if they

are higher than know settings, the system will alarm.





Features:

• 6 Standard parameters: ECG, TEMP, NIBP, SpO2, RESP, PR

• 8 inch high resolution color screen

• Real time S-T segment analysis, pace-maker detection

• Indication of incorrect manipulation and malfunction analysis

• Patient info input management function

• Large volume of tabular and praphic trends information storage and easy to recall

• Capture 2-hour dynamic trend

• Various interfaces:standard screen,trend screen,oxyCRG screen,big front screen

• Up to 400 groups NIBP list,60 alarm event records recall, 7-day trend chart in storage.

• Up to 2 hours working capacity of built-in rechargeable

lithium battery

• Unique accessory management cabinet

• Networking capacity

ETCO2, cart, wall shelf are optional



Parameters:



ECG



Lead Mode 3-lead and 5-lead are optional

Lead Selection I, II, III, avR, avL, avF, V

Wave 5-lead: 2 channels

3-lead: 1channel

Gain ×2.5mm/mV, ×5.0mm/mV, ×10mm/mV,

×20mm/mV

HR Measuring and Alarm Range

Range 15 ~ 300 bpm

Accuracy ±1% or ±1bpm, which is greater

Alarm Accuracy ±2bpm

Resolution 1 bpm

ST Segment Monitoring Measuring and Alarm Range -0.6 mV~ + 0.8 mV
Alarm Available
Review Available

Scan Speed for ECG

Waveform is adjustable

12.5mm/s accuracy ±10%

25mm/s accuracy±10%

50mm/s accuracy±10%

Respiration



Method R-F(RA-LL) Impedance

Differential Input Impedance >2.5 MΩ

Measuring Impedance Range 0.3~5.0Ω

Baseline Impedance Range 100Ω– 2500Ω

Bandwidth 0.3 ~ 2.5 Hz

Resp. Rate



Measuring and Alarm Range 0~120rpm

Resolution 1 rpm

Measuring Accuracy ±2 rpm

Alarm Accuracy ±3rpm

Apnea Alarm 10 ~ 40 S

NIBP

Method Oscillometry

Mode Manual, Auto, continuous

Measuring Interval in AUTO Mode 1 /2 /3 /4 /5/ 10/ 15/ 30 /60 /

90/120/240/480/960 Min

Measuring Period in Continuous Mode 5 Min

Measuring and Alarm Range 10~270mmHg

Alarm Type SYS, DIA, MEAN

Resolution



Pressure 1mmHg

Cuff Pressure ±3 mmHg

Accuracy ±10% or ±8mmHg, which is greater

Over-pressure Protection:

Adult Mode 315±10 mmHg

Pediatric Mode 265±10 mmHg

Neonatal Mode 155±10 mmHg

SpO2

Measuring Range 0 ~ 100 %

Alarm Range 0 ~ 100 %

Resolution 1 %

Accuracy 70% ~ 100% ±2%

0% ~ 69% unspecified

Pulse Rate(PR)



Measuring and Alarm Range 0~250bpm

Resolution 1bpm

Measuring Accuracy ±2bpm or ±2%, which is greater

Alarm Accuracy ±2bpm

TEMP

Channel dual-channel

Measuring and Alarm Range 0 ~ 50°C

Resolution 0.1°C

Accuracy ±0.1°C

Actualization Interval about 1 Sec.

Average Time Constant < 10 Sec.

Alarm responding Time ≤2min






ECG / TEMP / NIBP / RESP / PR / spo2 monitor M8 multi - parameterECG / TEMP / NIBP / RESP / PR / spo2 monitor M8 multi - parameterECG / TEMP / NIBP / RESP / PR / spo2 monitor M8 multi - parameter





Packaging & Delivery

Packaging Details: Packing: 1 unit/carton
1* Patient monitor
reusable Spo2 sensor (1 pc);
ECG cable and leadwire (1 pc);
NIBP cuff and tube (1 pc);
Built-in lithium battery (1 pc)
1*English user manual (1pc)
Delivery Detail: Shipped in 7 days after payment





Competitive Advantage:



Biggest manufacturer in China

In stock supplies

1 year Warranty

100% quality guarante before shipment out

Nice after-sale service
