Product Details:
Payment & Shipping Terms:
|
| Product Name: | Portable Ultrasound Doppler Scanner | Warranty: | One Year |
|---|---|---|---|
| Usage: | Human | Color: | White |
| Dimension: | 40mm X 250mm X 120mm | ||
| High Light: | personal ultrasound machine,equine ultrasound machine |
||

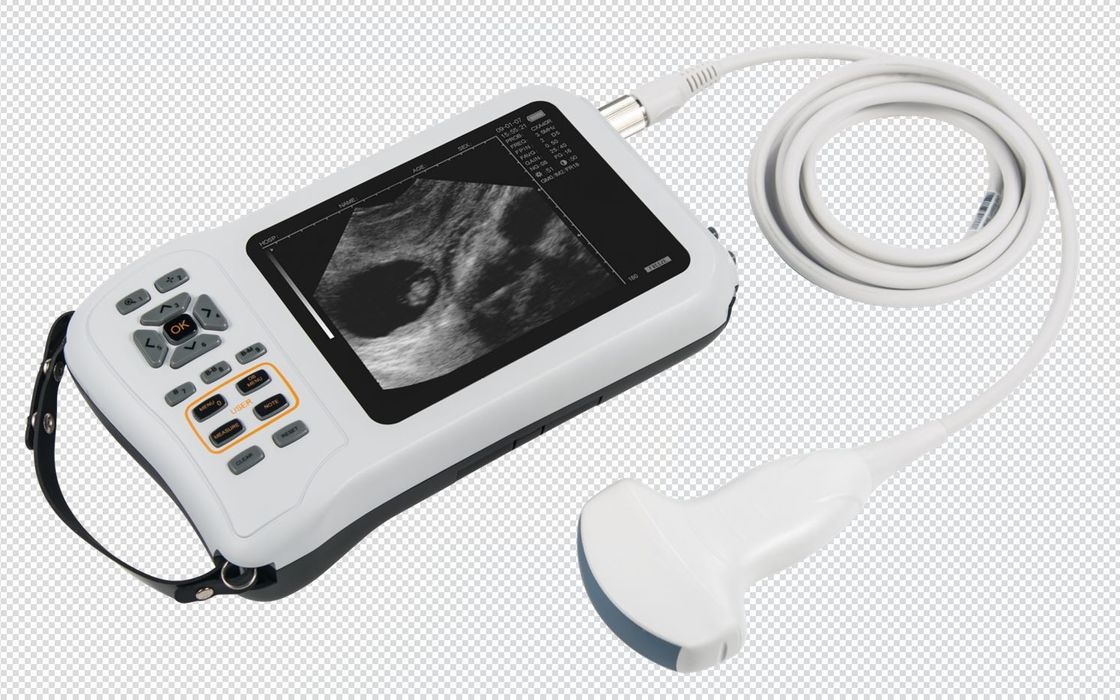

5.8 inches portable Ultrasound Pocket Fetal Doppler scanner FarmScan® L60 human use
Quick detail:
model number: L60
color: white
Compact and easy-to-use features:
Color LCD display
Brightness control
Light and smart, hand-held designed
Two lithium-ion batteries
I-Scan® Video goggle
Neck strap and hand strap
Description:
Precision aiming ability via ergonomically designed console and probe
32 digital channels and 128 elements probe
Video output, support I-Scan® video glasses eases your job and gets you focused (optional)
Easy-to-use, handheld probe
Color LCD screen for easy reading
Brightness controls
Portable, Reliable and durable design
Two batteries provided for continuous use
Support USB 2.0 for ultrasound station to transfer images and video to your computer, 450~550-frame cine loop and 128 images insider;
4.5~5.5 hours Li-ion battery for operating;
Application:
FarmScan® L60 Featuring premium image quality,ergonomic design, fast and reliable detection of pregnancy and gynecological. It makes your diagnosis more precise and ensure determine the best time for insemination, early/late pregnancy and sex.
Specification:
Monitor: 5.8 inches high resolution TFT LCD
Display modes: B,M,B+B,B+M,4B Mode
Display Depth: ≥220mm, multi-steps
Gray Scale:256
Report: Obstetric report
Scanning technology: Real-time dynamic imaging, harmonic imaging
Operating time: 4.5 hours of continuous operation
Net weight: 0.6kg
Image storage: 64-80 images
CINE Loop:≥450 frames
Image flip: left/right, up/down, brightness, contrast ratio, focus number, focal position
Image Procession: Pseudo color, r correction, Image Smoothen, Histogram
Measurement: Distance, Circumference, Area, Volume
Digital channels: 32
Probe: Multi-frequency probe series
Image magnification: 8 levels zoom in
Character Annotation: Date, time, name, sex, age, doctor, hospital, full screen words edit
High speed USB socket: connect to PC & Printer, download image to PC
Dimension: 40mm X 250mm X 120mm
Standard configuration:
FarmScan® L60 machine
Abdominal convex probe (or selected one of optional probes:Rectal linear,Rectal convex, high frequency linear,Micro-convex)
Li-ion high power capacity battery
Battery charger
Neck strap and hand strap
User guide
Aluminum alloy carry case
Optional Configuration:
optional probes:Rectal linear,Rectal convex, high frequency linear,Micro-convexx,Abdominal convex
Li-ion high-power-capacity battery ;
Car Charger;
Battery charger
Video goggle
Wrist LED Monitor;
