Product Details:
Payment & Shipping Terms:
|
Product Name: | Wireless Ultrasound Probe | Size: | Small |
---|---|---|---|
Function: | Ultrasound Test Abdomen Organ | Package: | White Box |
Wireless Link: | To PC | Optional Probe: | UProbe-2C:3.5MHz /UProbe-3C:3.5MHz/UProbe-2L:7.5MHz/ UProbe-3L:7.5MHz/ UProbe-3N:10MHz |
High Light: | mini ultrasound machine,equine ultrasound machine |

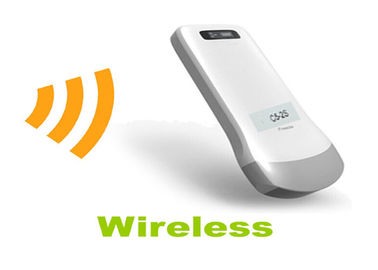

Portable Ultrasonic Diagnostic Devices Type wireless ultrasound with convex probe

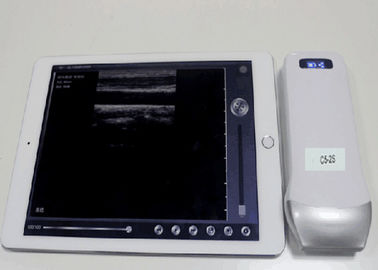

This wireless probe scanner with integrated ultrasound circuit boards inside, can wireless connect to the PC Tablet, Smart Phone that after installed ultrasound software, then realize the functions of a ultrasound scanner.
It is so small and smart, convenient for carry and operation.
Application Range:
In emergency clinical, hospital ward inspection, community clinical and outdoor inspect, an easy carried & operated
compact ultrasound such as UP-2 wireless probe is desired.
In addition, the wireless probe can be conveniently used in surgery without fixing of cables. And by using the
disposable protecting cover, it can easily solve the sterilization issue of the probe.
Also for powerful communication capability of the smart terminals, the wireless probe can meet the needs of
the telemedicine.
Feature:
·Workable with Tablet or Smart Phone
·Built-in and replaceable battery
·Advanced digital imaging technology, clear image
· High cost-effective
·Wireless connectivity, easy to operate
·Small and light , easy to carry
·Applicable in emergency, clinic, outdoor and vet inspection
·Intelligent terminal platform, powerful expansion functions on application, storage, communication, printing
Specifications:
-Scanning system: convex/linear array scan;
-Frequency: 3.5MHz (convex array)
7.5MHz (linear array)
-Depth: 100~200mm, Adjustable
-Field of view(convex array): 80 degree
-Screen: Smart phone or tablet screen
-Supporting system: Apple MacOSx (Android,
Windows system version coming soon)
-Display mode: B, B/M
-Frame rate: 12f/s
-Image gray scale: 256 level
-Image Storage: Using intelligent terminal customers
to use (mobile phones, Tablet PC) storage devices
-Measure: distance, area, obstetrics and other;
-Power: by built-in battery
-Power consumption: 10W (unfreeze) /4W (freeze)
-Battery working time: 3 hours
-Size: 156mm×60mm×24mm
-Weight: 308 gram
Standard Configuration:
-Main Host (probe) 1 Unit
-Internal Battery and charge cable 1 Set
